Movement & Expansion Joints
Home > Terraces > PROTERRACE PCJ

PROTERRACE PCJ

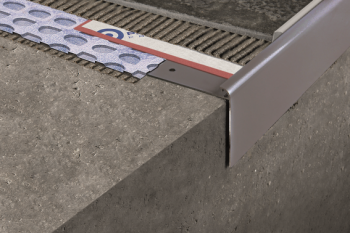

 PROTERRACE PCJ is an edging profile in varnished aluminium designed to protect the screed and the edges of the tiles laid on terraces and balconies. The profile is equipped with a punched flange that ensures its fixing to the support. The flange is also provided with small holes with a diameter of 2.5 mm that allow the momentary fixing of the profile with nails. To reach a right connection between profile and the waterproofing system it’s needed to use PROBAND 150 with PROBAND KOLL/AB. The product is also available on request with a SPECIAL SEASIDE PRE-TREATMENT which increases its resistance to corrosion when installed at sea front environments.

3D VIEW means that you can view product in 3D (in a pop up window) » click to install 3D View Plugin. Click the product images below left to view.
PCJ10 8055AL...1 Pcs
VARNISHED/COATED ALUMINIUM

PROTERRACE PCJ in varnished/coated aluminium is a range of edging profiles for finishing and protecting the concrete front edges of terraces and balconies. The profile has been designed with a tile retaining and finishing joint 10 or 12.5 mm in height plus a drainage corner to protect the screed. Placing it under the waterproofing membrane, it acts as a drip moulding. It can be laid flush with or detached from the screed according to whether the tiles are laid flush with or protruding from the screed. Available in 3 with standard punched base (width 80 mm) and heights 55, 75 and 95 mm, in the versions with joint 10 or 12.5 mm. Prewelded outside and corner joints as well as corner linking elements also available to join the profile longitudinally.


Dimension: bar length 2,7 lm pack. 7 Pcs 18,9 lm (H 75 mm - 13,5 lm - H 95 mm - 5,4 lm)

Click to view product

Pack Size

Colour

Our Price
NZ$ 242.33
(NZ$ 210.72 ex GST)

Quantity

AEPJ10 55AL..1 Pcs
EXTERNAL CORNERS

PROTERRACE PCJ in varnished/coated aluminium is a range of edging profiles for finishing and protecting the concrete front edges of terraces and balconies. The profile has been designed with a tile retaining and finishing joint 10 or 12.5 mm in height plus a drainage corner to protect the screed. Placing it under the waterproofing membrane, it acts as a drip moulding. It can be laid flush with or detached from the screed according to whether the tiles are laid flush with or protruding from the screed. Available in 3 with standard punched base (width 80 mm) and heights 55, 75 and 95 mm, in the versions with joint 10 or 12.5 mm. Prewelded outside and corner joints as well as corner linking elements also available to join the profile longitudinally.


Dimension: Single / Pack 10 Pieces

Click to view product

Pack Size

Colour

Our Price
NZ$ 127.86
(NZ$ 111.18 ex GST)

Quantity

GINJ10 55AL..1 Pcs
JOINTS

PROTERRACE PCJ in varnished/coated aluminium is a range of edging profiles for finishing and protecting the concrete front edges of terraces and balconies. The profile has been designed with a tile retaining and finishing joint 10 or 12.5 mm in height plus a drainage corner to protect the screed. Placing it under the waterproofing membrane, it acts as a drip moulding. It can be laid flush with or detached from the screed according to whether the tiles are laid flush with or protruding from the screed. Available in 3 with standard punched base (width 80 mm) and heights 55, 75 and 95 mm, in the versions with joint 10 or 12.5 mm. Prewelded outside and corner joints as well as corner linking elements also available to join the profile longitudinally.


Dimension: Single / Pack 10 Pieces

Click to view product

Pack Size

Colour

Our Price
NZ$ 25.06
(NZ$ 21.79 ex GST)

Quantity
